LOWRANCE ACTIVETARGET LIVE SONAR TRANSDUCER(GEN1)

With the Lowrance ActiveTarget Sonar you can watch high-solution images of fish movements – tracking them as they swim in and around cover. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging. Track fish and your presentation with high-resolution views in front or below your boat, or use Scout mode to see an ultra-wide overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.

FORWARD VIEW

• View the water column 18 degrees side-to side and 135 degrees top to bottom.
• Use for seeing fish and structure directly in front of the transducer.
• Know the depth of the fish and structure to target your next cast.

DOWN VIEW

• View the water column 18 degrees side-to-side and 135 degrees front-to-back
• Use for vertical fishing to see what is below the transducer.
• Watch your lure and fish movements in real time
• Put the lure in front of the fish and watch it strike

SCOUT VIEW

• View the water column 135 degrees side-toside and 18 degrees top-to-bottom
• Use to scan large areas for fish and structure
• Search for schooling fish and know the direction of your next cast

ActiveTarget is compatible with Lowrance HDS Live, HDS Carbon and Elite FS Fishfinder/chartplotters.

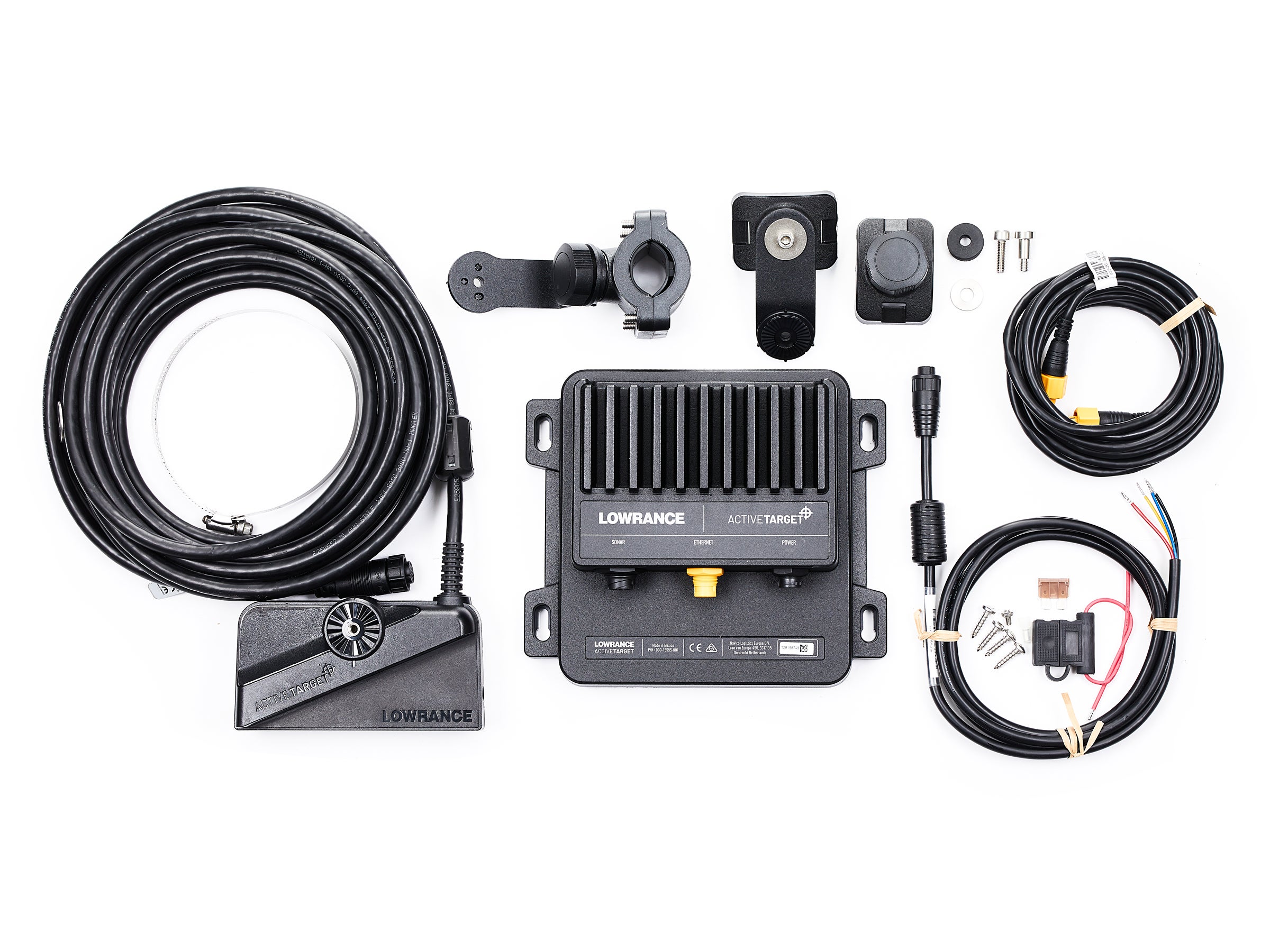

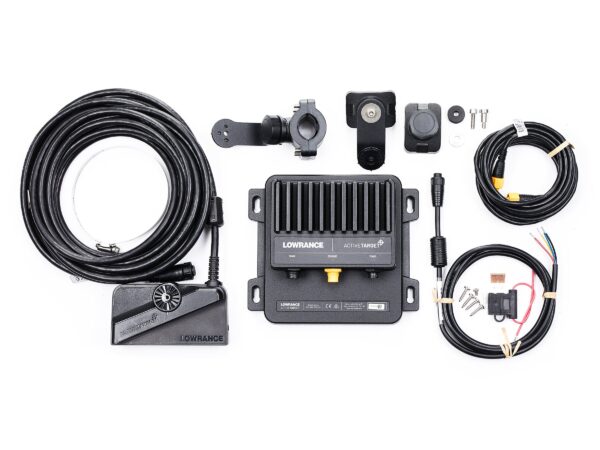

WHAT’S IN THE BOX

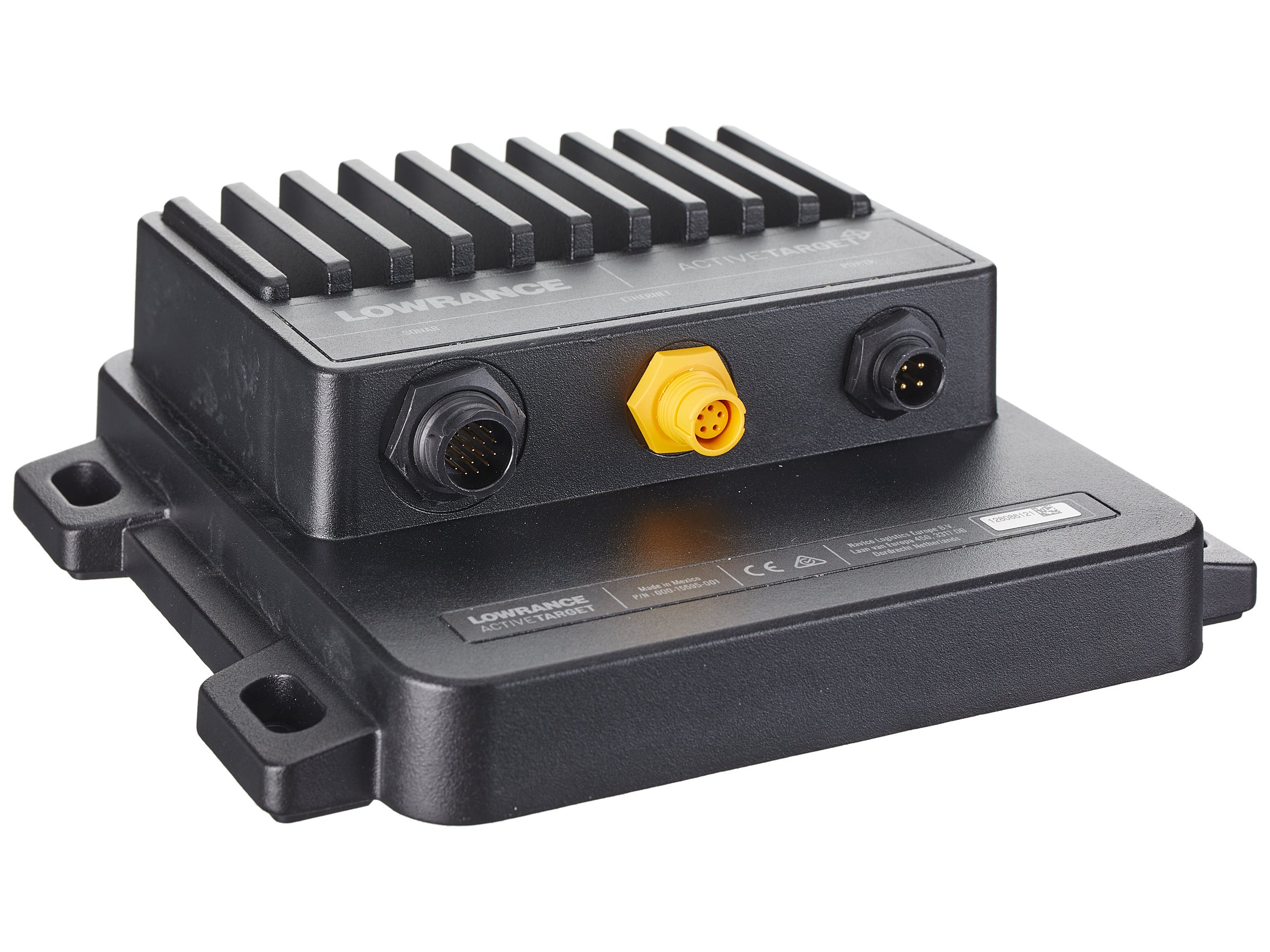

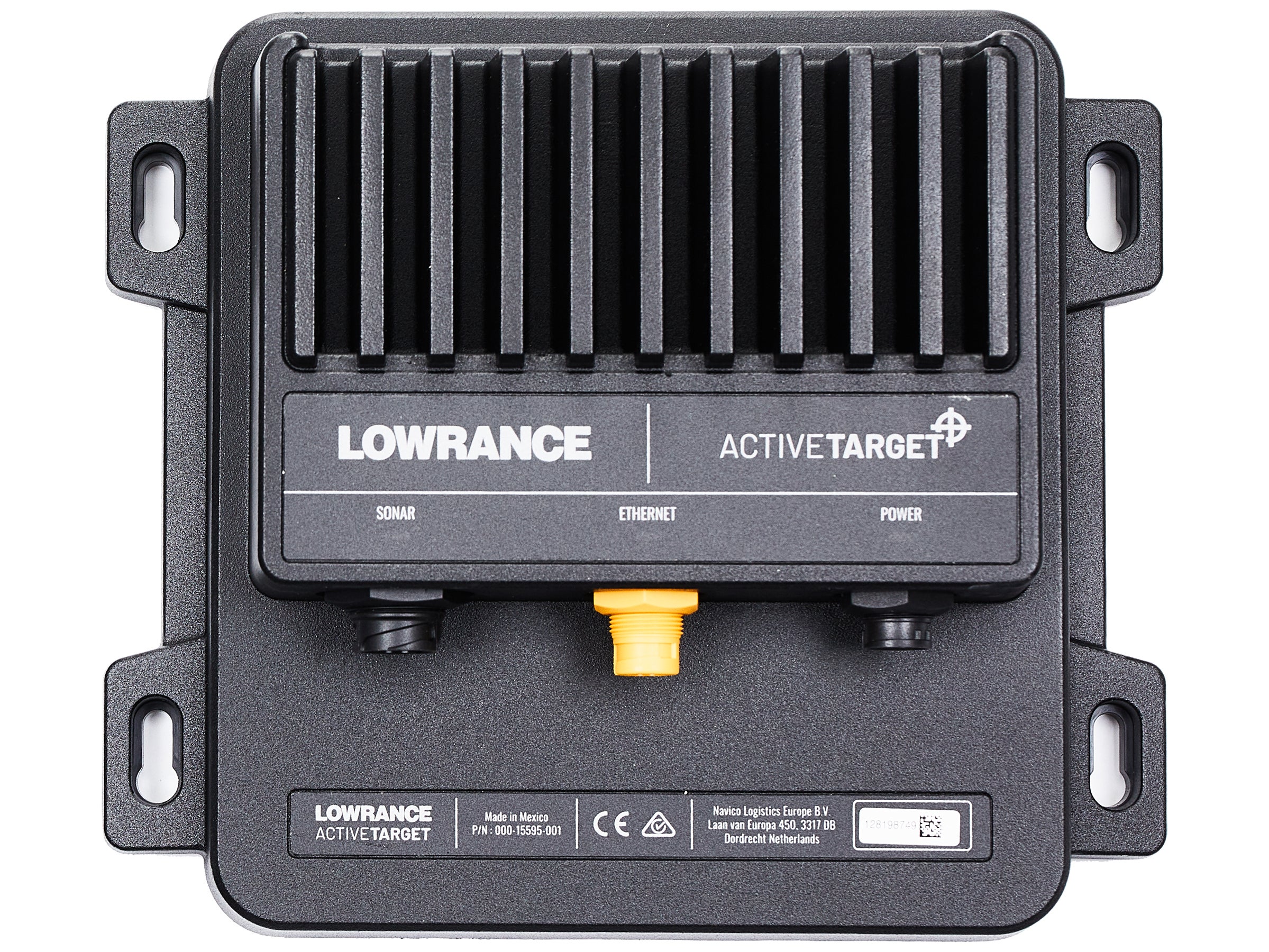

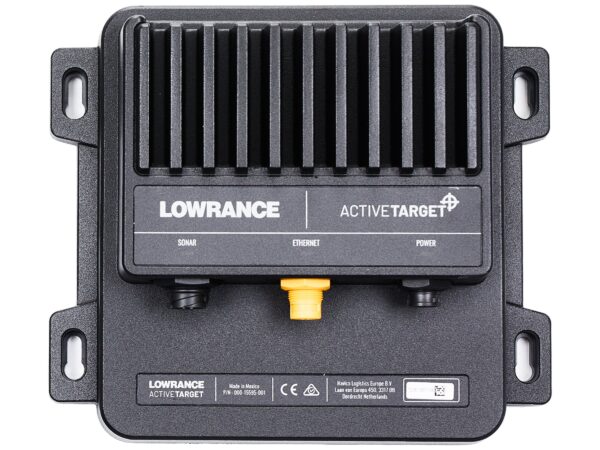

1. ActiveTarget Module

2. ActiveTarget Transducer w/ 25ft Cable

3. Shaft Mounting Hardware (Forward/Down/Scout)

4. Motor Mount (Forward/Down)

5. Motor Mount (Scout)

6. 15ft. Ethernet Network Cable

7. 4-pin Power Cable
